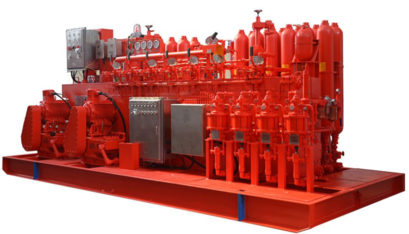

Blowout preventers (BOPs) are critical safety devices used in the oil and gas industry to control and monitor the oil and gas wells to prevent blowouts—uncontrolled releases of crude oil or natural gas. These devices are essential for ensuring the safety of personnel, protecting the environment, and maintaining control over well pressure during drilling operations. This comprehensive guide explores the various types of blowout preventers, their functions, and their importance in the oil and gas sector.
Blowout preventers are designed to seal, control, and monitor oil and gas wells to prevent blowouts. A blowout can occur when high-pressure formations are encountered unexpectedly, leading to an uncontrolled release of fluids. This can result in catastrophic consequences, including loss of life, environmental damage, and significant financial losses. BOPs are installed on top of the wellbore and are a crucial part of the well control system.
Blowout preventers are broadly classified into two main categories: annular BOPs and ram BOPs. Each type has distinct features and applications, which are essential for maintaining well control in different scenarios.
Annular Blowout Preventers
Annular BOPs are designed to seal around any object in the wellbore or close off an open hole. They use a robust, flexible rubber packing element that can conform to various shapes and sizes. The key advantages of annular BOPs include their versatility and ability to seal around different types of drill pipe, casing, and even irregular objects.
Functionality
Annular BOPs function by using hydraulic pressure to compress the rubber element, forcing it to seal against the wellbore or any object within it. The seal is maintained as long as the hydraulic pressure is applied. Annular BOPs are typically used as the first line of defense in well control operations due to their ability to seal around a wide range of objects.
Applications
Annular BOPs are commonly used in drilling operations where the drill string needs to move freely while maintaining well control. They are also used during cementing operations and while running casing into the wellbore.
Ram Blowout Preventers
Ram BOPs use steel rams to seal off the wellbore. There are several types of ram BOPs, each designed for specific functions. The primary types of ram BOPs include blind rams, pipe rams, shear rams, and variable bore rams.
Blind Rams
Blind rams are designed to seal off an open wellbore when there is no pipe in the hole. They provide a complete seal, preventing any fluids from escaping. Blind rams are critical during well control operations when it is necessary to shut in the well completely.
Pipe Rams
Pipe rams are designed to seal around a specific size of drill pipe, casing, or tubing. They are used to maintain well control while the pipe is in the wellbore. Pipe rams are essential for operations where the drill string needs to be secured without completely shutting in the well.
Shear Rams
Shear rams are designed to cut through the drill pipe and seal the wellbore in emergency situations. These rams are critical for maintaining well control during blowout scenarios where the drill string needs to be severed to prevent uncontrolled fluid release. Shear rams are often the last line of defense in blowout preventer stacks.
Variable Bore Rams
Variable bore rams are designed to seal around various sizes of pipe without needing to change the ram blocks. They provide flexibility and are used in situations where multiple pipe sizes are involved in the drilling operation. Variable bore rams reduce the need for multiple ram BOPs, enhancing operational efficiency.
In many drilling operations, a combination of annular and ram BOPs is used to provide multiple layers of protection. These combination BOP stacks are designed to handle various well control scenarios and ensure maximum safety and operational flexibility.
The primary advantage of using combination BOP stacks is the ability to address different well control situations with a single assembly. Annular BOPs provide a versatile sealing solution, while ram BOPs offer specific sealing capabilities for different pipe sizes and emergency scenarios. This combination enhances the overall safety and efficiency of drilling operations.
A typical combination BOP stack includes one or more annular BOPs on top of several ram BOPs. This configuration allows operators to use the annular BOP for routine well control operations and switch to the ram BOPs when specific sealing or cutting actions are required. The exact configuration of a BOP stack depends on the well conditions, drilling objectives, and regulatory requirements.
Proper maintenance and testing of blowout preventers are critical for ensuring their reliability and effectiveness. Regular inspections, pressure tests, and function tests are essential to identify and address any issues before they lead to well control incidents.
Maintenance Practices
Maintenance practices for BOPs include regular visual inspections, pressure testing, and replacement of worn or damaged components. Annular BOPs require particular attention to the rubber packing elements, which can wear out over time. Ram BOPs need regular inspection of the ram blocks and sealing surfaces to ensure they function correctly.
Regulatory Requirements
The oil and gas industry is highly regulated, and there are stringent requirements for the maintenance and testing of BOPs. Regulatory agencies such as the Bureau of Safety and Environmental Enforcement (BSEE) in the United States mandate regular testing and certification of BOPs to ensure they meet safety standards. Compliance with these regulations is essential for safe and efficient drilling operations.
The design and functionality of blowout preventers have evolved significantly over the years, driven by advancements in technology and the increasing complexity of drilling operations. Modern BOPs incorporate advanced materials, automation, and real-time monitoring capabilities to enhance their performance and reliability.
Advanced Materials
The use of advanced materials, such as high-strength alloys and elastomers, has improved the durability and performance of BOPs. These materials can withstand higher pressures and temperatures, making them suitable for challenging drilling environments.
Automation and Remote Operation
Automation and remote operation technologies have revolutionized the way BOPs are controlled and monitored. Modern BOP systems can be operated remotely, reducing the need for manual intervention and enhancing safety. Real-time monitoring systems provide continuous data on the condition and performance of BOPs, allowing for proactive maintenance and immediate response to well control incidents.
Blowout preventers are indispensable safety devices in the oil and gas industry, playing a crucial role in preventing blowouts and ensuring the safety of personnel and the environment. Understanding the different types of BOPs and their applications is essential for effective well control and safe drilling operations. As technology continues to advance, the design and functionality of BOPs will continue to evolve, further enhancing their reliability and performance in increasingly complex drilling environments.
By adhering to stringent maintenance practices and regulatory requirements, the industry can ensure that blowout preventers remain a robust line of defense against well control incidents.
