In the oil and gas industry, safety and operational reliability are paramount. Among the many procedures in place to ensure the integrity of equipment and systems, pressure testing plays a crucial role on oil rigs. A pressure test verifies that components such as pipelines, valves, wellheads, and blowout preventers (BOPs) can handle the pressures they will be subjected to during drilling and production operations. This article provides an in-depth look at what a pressure test on an oil rig entails, its purpose, types, and the processes involved.
The primary goal of a pressure test on an oil rig is to verify the integrity of the system or equipment before it is exposed to operational pressures. The oil and gas environment is highly demanding, with systems required to contain and manage extreme pressures, temperatures, and flows of hydrocarbons. Any failure in these systems could result in catastrophic consequences, such as oil spills, gas leaks, or blowouts.
By conducting pressure tests, operators can ensure that the equipment and systems can withstand the expected loads, and more importantly, identify any weaknesses or leaks before they become problematic during live operations. Regular pressure testing is a regulatory requirement for ensuring safety, environmental protection, and maintaining the long-term reliability of the oil rig’s systems.
Various components on an oil rig are subject to pressure testing. These tests are critical at different stages of exploration, drilling, and production. Key equipment includes:
Blowout Preventers (BOPs): One of the most critical pieces of safety equipment on an oil rig, BOPs are tested to ensure they can seal the wellbore in the event of an uncontrolled pressure surge (blowout).
Wellheads and Christmas Trees: These systems control the flow of hydrocarbons from a well and are pressure-tested to verify their ability to contain well pressure.
Casing and Tubing: The steel pipes lining the wellbore are pressure-tested to ensure they maintain integrity under the weight and pressure of drilling fluids and hydrocarbons.
Pipelines: Flowlines that transport oil or gas from the wellhead to storage tanks or processing units must also be tested for leaks and pressure resilience.
Valves and Manifolds: Critical for regulating flow and ensuring safe operations, valves and manifolds undergo pressure tests to prevent leaks and ensure proper function under pressure.
Pressure tests on oil rigs fall into two main categories: hydrostatic and pneumatic testing. Each has its own specific procedures and applications.
1. Hydrostatic Pressure Testing
Hydrostatic testing is the most common method of pressure testing on oil rigs. In this process, the component or system is filled with water (or another incompressible fluid) and pressurized to a level higher than its normal operating pressure. This is usually between 1.25 to 1.5 times the working pressure of the system.
The system is then monitored for a specific period to check for any drops in pressure, which would indicate a leak or a defect in the system. Hydrostatic testing is preferred because water, being an incompressible fluid, reduces the risk of an explosive failure if a leak is present.
2. Pneumatic Pressure Testing
Pneumatic testing uses compressed air or gas (often nitrogen) to pressurize a system. This method is less common due to the increased risk of damage or explosive failure, as gases are compressible and can store much more energy than liquids. However, pneumatic testing is sometimes used when water cannot be introduced into the system, such as in cases where the presence of water could cause corrosion or contamination.
3. Low-Pressure and High-Pressure Testing
Pressure tests are often categorized based on the pressure levels they involve. Low-pressure tests are usually conducted during the early stages of operations to identify gross leaks. High-pressure tests, on the other hand, are used to simulate the actual operating conditions the system will face, ensuring that equipment can handle the maximum pressures without failure.
The pressure testing process is methodical and follows a strict protocol to ensure accuracy, safety, and compliance with industry standards. The general steps involved in a pressure test on an oil rig include:
1. Preparation
Before a pressure test is conducted, the system or component being tested is isolated from the rest of the operation. This often involves closing off valves, removing sensitive components, and setting up pressure testing equipment. The system is thoroughly cleaned to remove any debris or foreign substances that could affect the test results.
2. Filling the System (Hydrostatic Test)
For a hydrostatic test, the system is filled with water or another test fluid. In some cases, additives are mixed with the water to prevent corrosion. The system is then purged of any air to ensure the pressure readings are accurate and to avoid potential damage caused by trapped air.

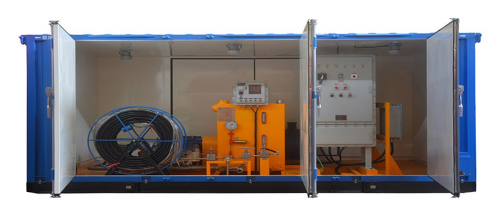

3. Pressurization
Once the system is filled, pressure is slowly applied using pumps or compressors. The pressure is gradually increased to the desired test level, which is typically higher than the system’s maximum working pressure. Care is taken to increase the pressure in controlled increments to avoid overstressing the equipment.
4. Monitoring
At the test pressure, the system is held for a specified duration, during which pressure readings are carefully monitored. In the case of a hydrostatic test, a drop in pressure usually indicates a leak or defect in the equipment. The system may also be visually inspected for any signs of leaks, bulging, or other deformations.
5. De-pressurization and Inspection
After the test is complete, the pressure is slowly reduced, and the system is depressurized. The system is drained (for hydrostatic testing), and a thorough inspection is conducted to check for any damage caused during the test. If no issues are detected, the equipment is deemed safe for use.
One of the most critical applications of pressure testing on an oil rig is the testing of the Blowout Preventer (BOP). The BOP is the last line of defense against uncontrolled well pressure. It is designed to seal off the wellbore in the event of a blowout, preventing oil or gas from escaping into the environment.
BOP Stack Testing
A typical BOP stack consists of several components, including rams, annular preventers, and choke lines. Each of these components is pressure-tested to ensure they function properly. High-pressure testing of BOP stacks is required by industry regulations before the rig begins drilling operations and at regular intervals during operations.
Annular and Ram Preventer Testing
The annular preventer, which seals around the drill pipe, is tested by closing it against the pressure exerted by the test fluid. The ram preventers, which use steel rams to seal the well, are also tested under pressure. These tests ensure that the BOP can successfully close and seal the well in the event of an emergency.
Pressure testing on oil rigs is subject to strict regulations and industry standards. Regulatory bodies such as the American Petroleum Institute (API), Bureau of Safety and Environmental Enforcement (BSEE), and the International Organization for Standardization (ISO) set guidelines that govern how pressure tests should be conducted.
API Standards
The API provides detailed standards (e.g., API Spec 6A for wellhead and tree equipment) outlining the requirements for pressure testing oil and gas equipment. These standards specify the pressure levels, test durations, and acceptable criteria for passing a test.
Safety and Environmental Considerations
Safety is a top priority during pressure testing. Testing is typically carried out by trained personnel who follow detailed procedures to minimize risks. Special attention is given to preventing over-pressurization, which could lead to equipment failure or injury.
Environmental considerations are also critical. If a pressure test reveals a leak, immediate action must be taken to prevent the release of hydrocarbons into the environment. Testing fluids, especially if hazardous, must be disposed of according to environmental regulations.
Although pressure testing is an essential part of oil rig operations, it presents certain challenges. One common issue is the difficulty in accessing some parts of the system, particularly in offshore rigs. Remote areas may require specialized equipment or extended testing periods, increasing the complexity and cost of the process.
Another challenge is the risk of equipment damage during the test. Over-pressurization or improper testing procedures can weaken components or create small defects that may lead to future failure. It is crucial to follow strict guidelines to mitigate these risks.
Pressure testing is an indispensable process on oil rigs, ensuring that the critical equipment and systems can withstand the extreme pressures involved in drilling, extraction, and production. By conducting pressure tests, operators ensure the safety of personnel, the protection of the environment, and the operational integrity of the rig. From BOPs and wellheads to pipelines and valves, pressure testing helps prevent costly failures and accidents, safeguarding both human life and natural resources.
