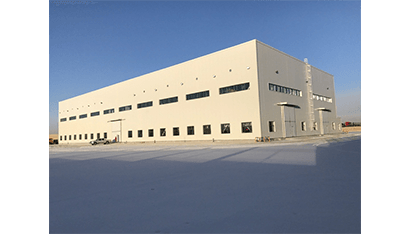

Well Control Maintenance Workshop for Pressure Test and Control System
Views: 614
Author: Site Editor
Publish Time: 2022-10-12
Origin: Site
DONGSU builds efficient, safe, stable and advanced well control pressure test and control systems for major oil field drilling companies.
|
1.System Scope Introduction
-
The new workshop starts from the overall design, planning and layout together with the architectural design party.
-
Old workshop upgrading, preliminary research, planning, construction.
|
|
2.Characteristics of technical parameters
-

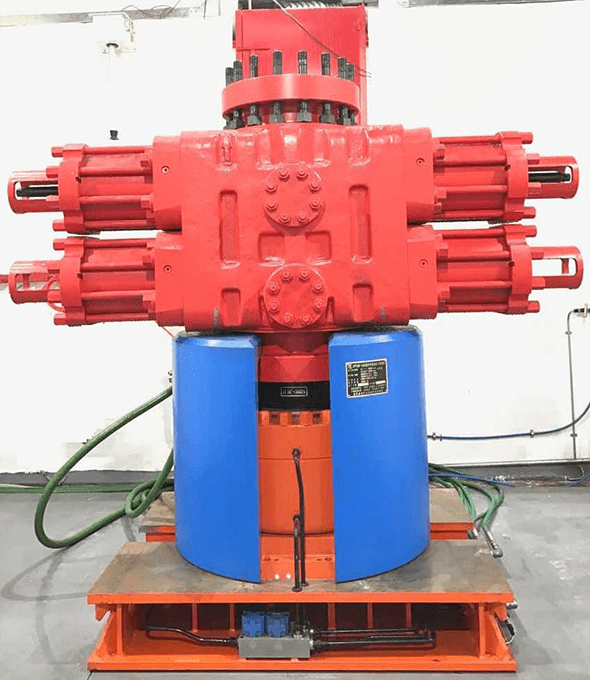

Suitable for: BOP, Choke Manifold, internal BOP tools, valve parts pressure testing.
-
Water seal pressure detection range: 0-200MPa
-
Gas seal pressure detection range: 0-140MPa
-
Working pressure of hydraulic station: 21MPa
-
Working pressure of air supply: <0.9MPa
-
Test working medium: clean water (fresh water)
-
Pressure test accuracy: 0.5%F.S
-
Operating voltage: 380V,50Hz
-
Ambient operating temperature: -13~50℃(below 0℃, the heating system should be turned on)
-
The control unit is used as a hydraulic station to simulate the application requirements of drilling field.
-
The measurement and control system can realize switching time measurement, switching liquid volume calculation, automatic pressure lifting test, data acquisition record and report generation and other functions.
-
The system can be operated in local manual or remote automatic mode to meet various well control requirements.
-
The control hydraulic station and high pressure test pump group are modular.
|
|
3. System composition
|
High-pressure water seal equipment room
|
BOP and Choke Manifold maintenance hydraulic station
|
|

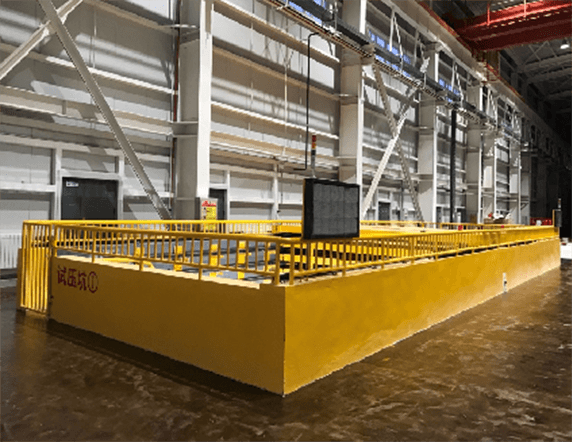

High-pressure water seal pressure test pit
|
Hydraulic control panel for maintenance station
|
|
High pressure gas sealing equipment room
|
Cleaning equipment system
|
|
High-pressure gas seal pressure test pit
|
Cleaning the Operating System
|
|
Integrated pressure test operating system
|
Cleaning auxiliary equipment group
|
|

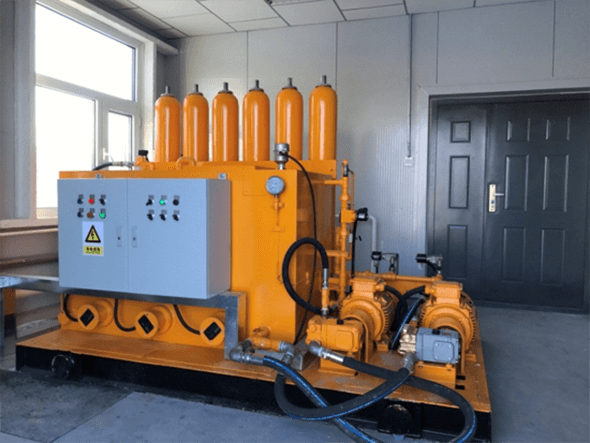

Pressure Measurement and Control System Power Station

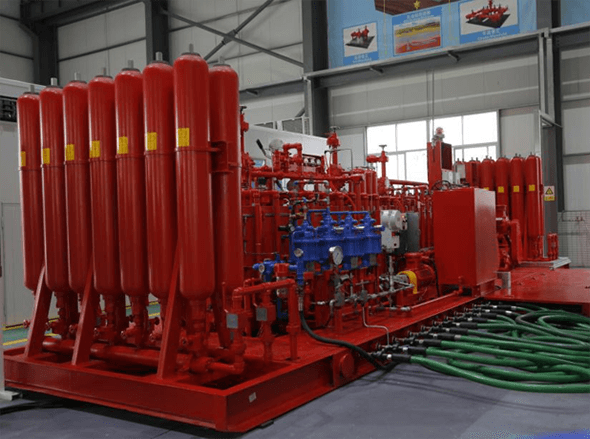

Multi-function BOP Control System

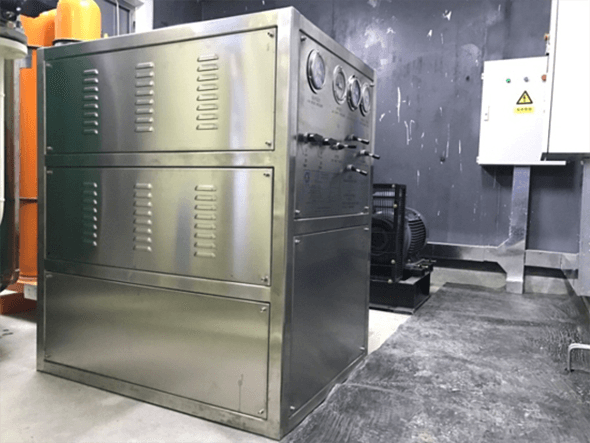

High Pressure Gas Sealing Equipment

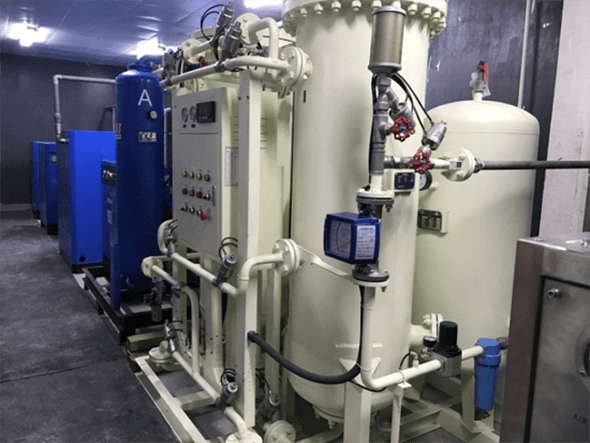

Nitrogen Making Machine
High pressure gas sealing equipment
Secondary Booster Pump Group

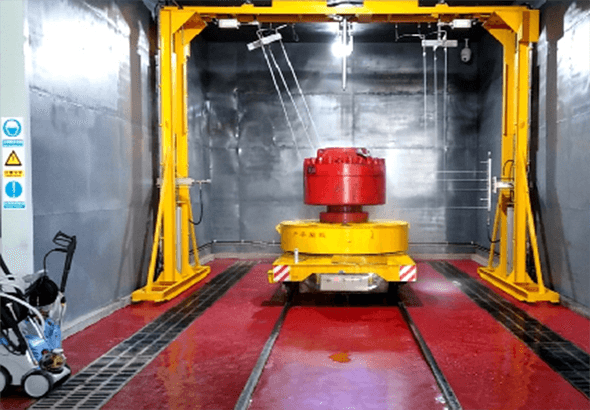

High Pressure Cleaning Equipment
High Pressure Washer
High Pressure Cleaning Equipment
Cleaning System

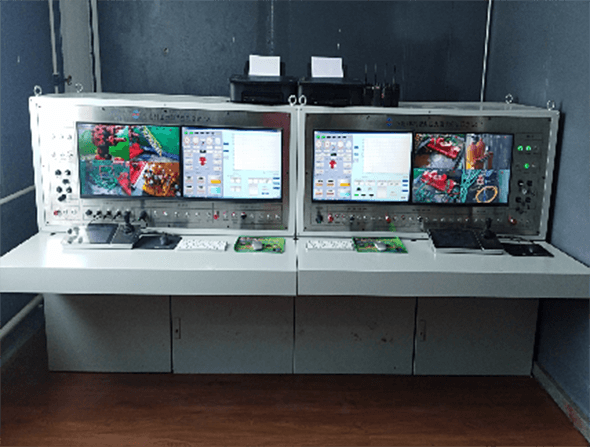

Intelligent Integrated Control Operating System
Pressure Testing System

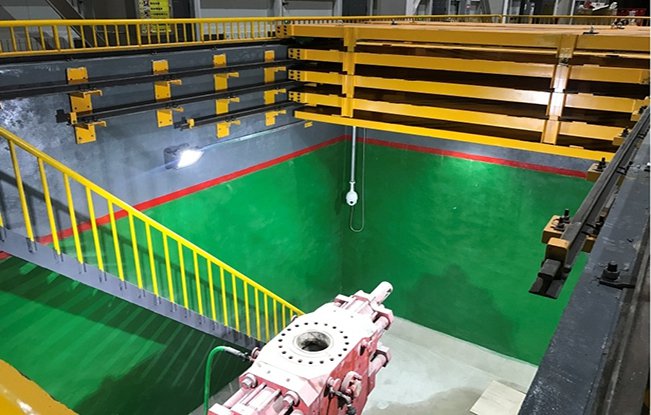

High-pressure Water Seal and Gas Seal Pressure Test Pit
High Pressure Test Pit
Water Seal & Gas Seal Pressure Test Pit
BOP Clamp
DONGSU well control maintenance workshop pressure measurement and control system, can meet the major oil field drilling company technical service construction requirements, welcome to consult!
